Item Id 402011
Item #: 402011
Item: GARDNER DENVER DGHE-60 Compressed Air Dryer
Model #: DGHE-60
Serial #: N/A
Year Built: N/A
Location: California
Price: $1,249.00
Description

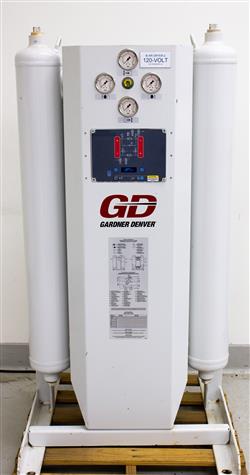

Gardner Denver DGHE-60 Pressure-Swing Regenerative Desiccant Compressed Air Dryer

Dual tower regenerative desiccant dryers are an economical and reliable way to dry compressed air to dew points below the freezing point of water (dew points as low as -150F (101C) [1 ppb @100 psig, 7.0 kgf/cm possible) or reduce the moisture content of compressed air when used in critical process applications.

These dryers continuously dry compressed air by using two identical towers, each containing a desiccant bed. While one tower is on-stream drying, the other tower is off-stream being regenerated (reactivated, i.e., dried out). The towers are alternated on- and off-stream so that dry desiccant is always in contact with the wet compressed air. In this way a continuous supply of dry air downstream of the dryer is possible.

Don't settle for less than the ability to satisfy all of your requirements for clean, dry compressed air. The Gardner Denver DGHE-60 with its carefully engineered desiccant dryer design provides a reliable method to remove moisture as a water vapor. With the option to add coalescing filters, solid particles, liquid water droplets, liquid oil and oil vapors can be removed from the compressed air system in a reliable manner.

**This unit has been tested for basic functionality. Unit has some rust & minor cosmetic blemishes from normal use. See photos for details.

Specifications:
Inlet Flow at 100 psig, (7 bar)
60

Connections
1 NPT

Maximum Working Pressure
150 psig

Minimum Operating Pressure for 150 psig Models
60 psig

Minimum Operating Pressure for 250 psig Models
120 psig

Maximum Inlet or Ambient Air Temperature
120 F49 C

Additional Prep Fees May Apply
Shipping
Item shipping dimensions and specifications
Dimension Measurement
Height: 61.00 in
Width: 40.00 in
Length: 48.00 in
Weight: 450.00 lbs
Prep Fee: N/A
