Item Details
Item specification details
Property Value
Item Id 433549
Item #: 433549
Item: Complete 50mL Mason Jar Mayberry Bottling Line
Model #: 50ml Mini Mason Jar Mayberry Line
Serial #: N/A
Year Built: N/A
Location: North Carolina
Price: $150,000.00
Description

Complete 50mL Mason Jar Mayberry Bottling Line
Item Type: Complete Line
Manufacturer: Pack Line
Model Number: 50mL Mini Mason Jar Mayberry Line
Last Use: Distilled Products
Dimensions: TBD

The uncaser/ rinser/ filler/ capper unit is manufactured by Pack Line Limited. The Model number is PFM PL 400168.

The Labeler unit is produced by Tadbik Labelling and Marking Solution and is model number TD-700M

The accumulation table is just a generic stainless steel turn table.

This is a ~25 bottle per minute system currently optimized for standard 48 pack Mayberry mini-Mason jars, though it could be modified to fill other similarly sized packages. The first unit uncases and air/ vacuum rinses the jars and feeds them onto the filler supply belt. The second unit volumetrically fills the jar/ bottle (can be calibrated to your package) and then applies the lid and inspects/ ensures lid is in place (magnetic inspection). Then the jar feeds to the Tadbik Labelling machine which has 3 heads to apply labels on front, back, and top of the jar/ bottle (configurable).

Equipment used to bottle and label 50 ml mason jars (Mayberry jars)
It is fully automatic with an air rinse, a rotary/ volumetric filler, and in-line labelling system. It rinses, fills, and labels about 20-30 units/ minute.

A front view of the uncaser/ rinser. Standard 48 pack cases of mayberry jars are fed directly into the unit as shows. A pneumatic arm lifts and rinses the jars, 12 at a time, and then places them on the infeed conveyors.
An overhead view of the rotary filler/ capper unit
A front view of the main filler unit. A source tank can be connected to the surge tank (left) with a pneumatic pump (flow controlled via air solenoid) which feeds volumetric filler head. Caps are fed into the hopper on the right and feed down the attached shoot

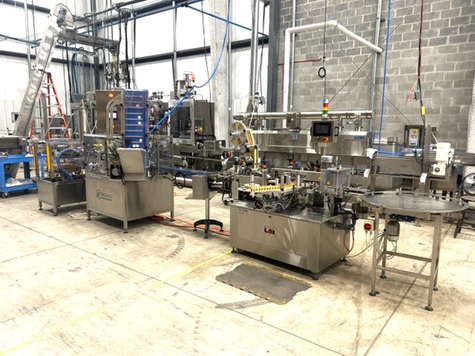

An overall view of the entire line: rinser, filler, transfer, labeler, packing table
A view of the line terminus with rotary packing table
A front view of the labeler unit. 3 heads allor label application on front, back, and top of jar. Settings controlled via HMI shown
A rear view of the labeler unit
Click here to view YouTube video 1
Click here to view YouTube video 2
