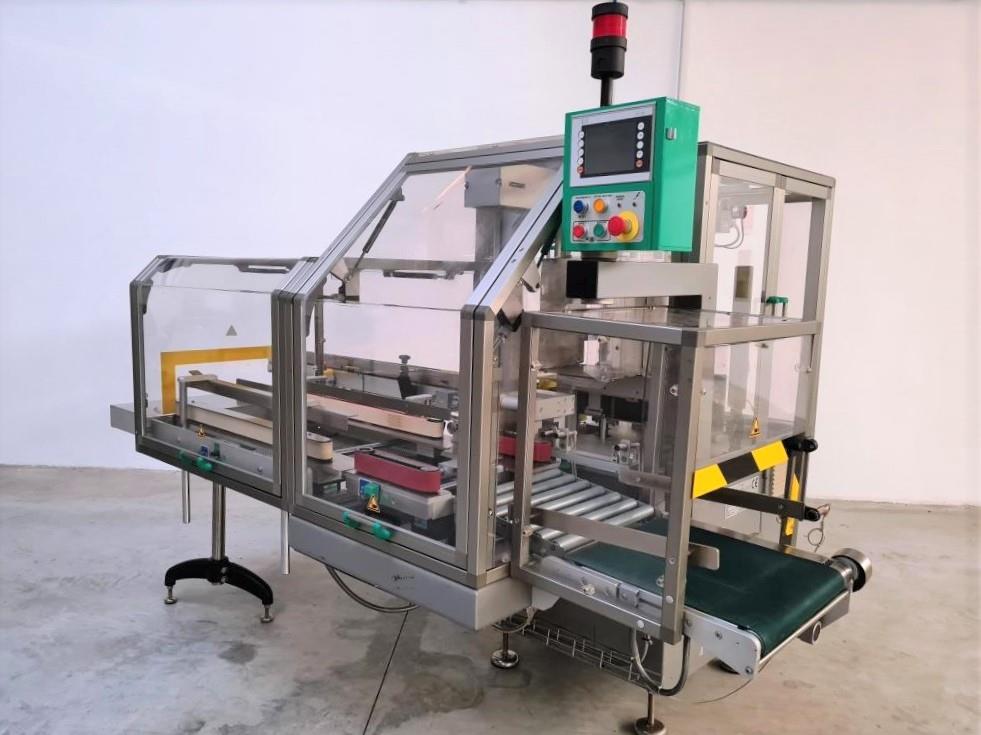

PACKSERVICE MARCHESINI PS 310 Case Packer for Sale

DESCRIPTION:
Semi-automatic case packer, designed and built to satisfy small to medium output production requirements. The pre-formed cases must be placed manually on the loading area. Cartons are fed by conveyor into the stacking unit, where they are collated upwards, as it is programmed through the Operator Interface Panel. The case is then automatically fed and discharged on a free running convey.

SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.

MAIN FEATURES:
-Wide range of cases and products working sizes;
-Fully enclosed structure with Safety guards and security Micro to suit CE rules;
-Cases feeding area totally safe, free from any mechanical movement;
-Torque overloading control on every motor;
-PLC controlled functioning;
-Fast and easy change over, with digital indicators and quick fixing of mobile change parts;
-Machine stop for minimum load at infeed with automatic re-start;
-Zone for carton transit, stacking and transfer into case, completely isolated to prevent products from falling into the machine;
-Alphanumeric Display for easy operator interface;
-Setting of product stacking through Display;
-Completely balcony-style case transit.

Year of construction: 2003

Mechanical speed 6 cases/minute

TECHNICAL DATA
Length mm 3300
Width mm 2500
Height mm 1950
Net weight Kg 750
Power Kw 3
Frequency Hz 50
Voltage Volt 380

PRODUCTION CHARACTERISTICS

Product size
length 25 – 440mm
width 10 – 140mm
height 65 – 180mm

Case size
length 140 – 450mm
width 110 – 350mm
height 75 – 250mm
