Item Details
Item specification details
Property Value
Item Id 399611
Item #: 399611

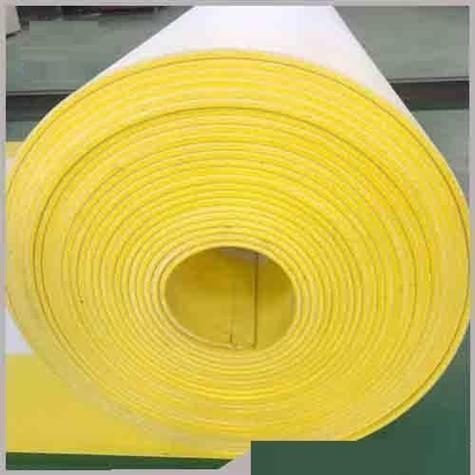

Item: Corrugator Belt
Model #: HT001
Serial #: 001
Year Built: 2022
Location: China
Price: $150.00
Description

Corrugator belts Inwoven Aramid Edge is a consistent development based on the proven woven high speed corrugator belt range. Also is ideal for corrugating systems with high production speed, even load systems and frequently changing paper widths.
Corrugator belts Inwoven Aramid Edge -Features
Suitable as top belt with high speed (above 150 m/min) production
Heat and super tear resistance
Inwoven Aramid edge to reinforce the belts, reduce wear substantially and ensure a long lifetime.
Particularly for frequent changes of board width
Mostly used for all Corrugating Production Lines.

Corrugator belts Inwoven Aramid Edge- Specification
Product Corrugator Belt Inwoven Aramid Edge
Thickness 8mm-10mm
Width range 1000mm - 3200mm
Length 80 meters
Heat-resistance 240℃ (the kevlar edge upto 350℃)
Tensile strength 70Mpa
Coefficient of friction ≥ 0.40µ
Weight per unit (7.5±0.3)kg/㎡
Air-permeability 40mm water Column 2.0m³/㎡ min
Seam Hot JAW lacing/Clipper with rubber coated
Edge 100mm or 200mm inwoven aramid edge reinforcement (kevlar)
Suitable position Top belt
Lifetime 50-70 million meter
Used on all corrugators high tearing resistance
Long life time running High abrasion resistance
Moisture absorption Heat resistance Low noise

Corrugator Belts with Silicone Coating Technical Parameters

Product High Speed Corrugator Belt
Thickness 9mm
Width range 1400mm - 3200mm
Length 80 meters
Heat-resistance 240ºC (the kevlar edge upto 350ºC)
Tensile strength 70Mpa
Coefficient of friction ≥ 0.40µ
Weight per unit (7.5±0.3)kg/m2
Air-permeability 40mm water Column 2.0m³/m2/min
Seam Hot JAW lacing/Clipper with rubber coated
Edge 100mm -400mm inwoven aramid edge reinforcement (kevlar)
Suitable position Top belt, Bottom  belt, Upper belt, Lower belt

Additional Prep Fees May Apply
Shipping
Item shipping dimensions and specifications
Dimension Measurement
Height: N/A
Width: N/A
Length: N/A
Weight: N/A
Prep Fee: N/A
