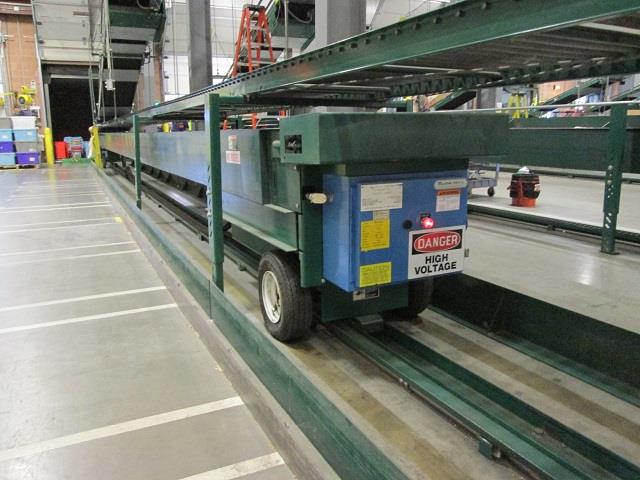

DEMATIC 3020 Fixed Trailer Loader
Price is for each, 16 units available.
Mobile power belt conveyor with a fixed gravity wheel or roller discharge section, which can be driven into a semi-trailer. This allows product to be conveyed into the trailer for shipping.
Product Specifications:
Min: 9in L X 6in W X 3in H, 2.5 lbs.
Max: 36in L X 26in W X 30in H, 50 lb/ft or 100 lbs max
Frame: 12in structural channel with welded crossmembers
Lengths: 43ft 11-1/2in or 52' 11-1/2in
Height: 36in or 30 in
Power Conveyor: 30-1/4in wide slider bed
Belt: 24in wide PVC-impregnated polyester carcass with low-friction surfaces both sides.
Belt Speed: 100 fpm
Conveyor Motor: 1-1/2 HP
Travel Length: 40 feet, 49 feet, or 53 feet
Manual Steering: Approx. 5 degrees in either direction.
Gravity Conveyor: 10 ft long wheel section with gravity full sensor roller and aluminum wheels.
Guidance: Front wheels steerable, rear wheels guided and centered by floor-mounted track.
Mobile Drive Unit: 2 HP motor, 60 fpm (.68 mph) travel speed, and two 16in solid core tires.
Controls:
-4 ft long emergency stop cable located in both sides of the gravity section.
-Discharge end stop bar to stop loader travel
-Control panel on side of gravity section. Includes start and stop buttons for the slider bed and overhead conveyor, forward and reverse control buttons, and a toggle switch for the lights.
-Gravity full sensor that turns off the slider bed conveyor and the decline conveyor feeding the trailer loader when the gravity section is full.
-Decline conveyor cabinet interlock.
Voltage: 208-230/460-480 volts, 3 PH, 60 Hz
Lights: Two 150W floodlight bulbs or 13 watt fluorescent tube light to illuminate trailer floor.
Loader Weight: 3750 lb. max (largest unit)
Price is for each, 16 units available.
Additional Prep Fees May Apply
