Item Details
Item specification details
Property Value
Item Id 431081
Item #: 431081

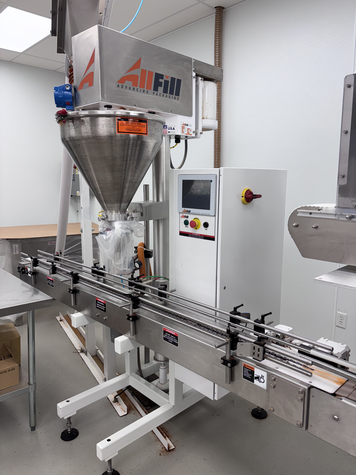

Item: ALL-FILL SHA Single Head Auger Filler
Model #: SHA
Serial #: N/A
Year Built: 2022
Location: Wisconsin
Price: $50,000.00
Description

ALL-FILL SINGLE HEAD AUTOMATIC FILLER

Heavy Duty Painted Aluminum Casting with one piece 304 stainless steel removable access cover.

22" Dia. 304 Stainless Steel, 2 cu.Y. capacity hopper

22" Dia. 304 Stainless Steel Dust Proof Hopper Cover

Safety Disconnect Switch for Inspection Door Power to the machine Is removed when the door is open.

One (1) piece hopper clamp assembly for easy removal.

Aluminum Self-Aligning "Quick Disconnect" Hopper coupling.

Funnel missing detector switch.

1-1/2 H.P., TEFC Drive Motor.

Heavy Duty Modular Warner EM-180 Electro-Magnetic Clutch Brake.

200 Pulse/Revolution Optical ShaY Encoder.

Slow Speed Agitation complete with 1/2 H.P., Gearhead Motor.

Aluminum mounting column.

8’ 304 Stainless Steel Conveyor Channel, Adjustable Guide Rails, & Variable Speed Drive.

Fully adjustable pneumatic container indexing stops, for convenient changeover between container sizes.

Painted Mild Steel Support Frame with 7” mechanical Jack Assembly to accommodate various height containers.

Vibration at fill station

CONTROL SYSTEM

Allen Bradley Programmable Controller with WEINTEK COLOR Touch Screen in a Painted Nema 12 Enclosure.

100 setup programs ▪ Alphanumerical product code for quick reference and setup. ▪ Programmable number of auger revolutions to achieve the target weight ▪ Programmable agita]on control modes of opera]on. ▪ Alarm func]on indicators with error messages to aid in locating problems. ▪ Hopper level monitored and displayed. (if equipped with level control) ▪ Maintenance Screen allows testing of individual or group devices & functions. ▪ Single Step opera]on for setup and test the func]on of the machine. ▪ Vibration On/Off Control with amplitude control (if equipped). ▪ Production Counter. ▪ Production CPM. ▪ No container no fill. ▪ Test Fill Calibration - Allows the operator to enter a taken sample weight, and the fill automatically adjusts the revolutions accordingly. ▪ Fill Advance - Used with free flowing products. Starts the auger prior to the container arriving under the nozzle. ▪ Dry Run Mode - Used during set up. All functions operate except the auger. Push/Pull Emergency Stop with Push to start latching e-stop circuit, and power light. Photo Electric No Container/No Fill Sensor. Transformer for 120 Volt Control Supply. Safety Disconnect Switch to remove all electrical power from the machine. PLC, 120v AC Transformer, 24v DC power supply, housed in a Painted Nema 12 Enclosure, with Fused Rotary Disconnect.

Additional Prep Fees May Apply
Shipping
Item shipping dimensions and specifications
Dimension Measurement
Height: N/A
Width: N/A
Length: N/A
Weight: N/A
Prep Fee: N/A
Registered customers can request free US domestic shipping quotes. Quotes take 1-3 business days to process.
