Item Details
Item specification details
Property Value
Item Id 401992
Item #: 401992
Item: LAUDA T 10000 Process Thermostat Cooler Heating
Model #: T 10000
Serial #: N/A
Year Built: N/A
Location: California
Price: $1,949.00
Description

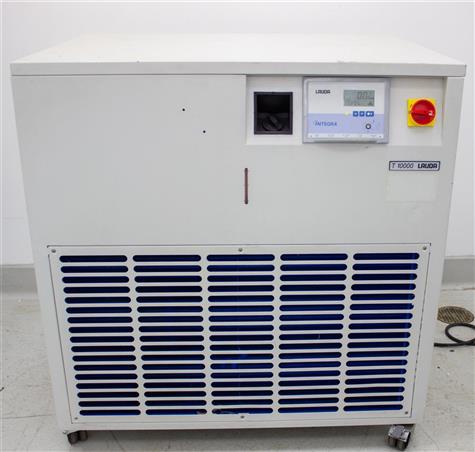

Lauda Integral T 10000 Process Thermostat Cooler Heating

The mobile Integral T process thermostats have an adjustable heating and cooling capacity and small, active internal volume that enables fast temperature changes. The minimized thermal ballast makes it possible to control exothermal reactions or simulate climatic influences, for example. Starting with the T 4600 model, the Integral Ts are equipped with an additional pump for independent internal circulation within the internal loop. An adjustable bypass valve between the inlet and outlet of the external loop also enables a reduction in pressure to protect, for example, pressure sensitive consumers.

**This unit is sold AS/IS. Unit powers on but needs new control board and temperature sensor.

Specifications:
Working temperature min. -30 C
Working temperature max. 120 C
Ambient temperature min. 5 C
Ambient temperature max. 40 C
Temperature stability 0.3 K
Application external
Filling volume min. 8 L
Filling volume max. 20 L
Cooling output at -5C measured with ethanol 7.4 kW
Heater power 9.0 kW
Cooling output at 20C measured with ethanol 13.0 kW
Cooling output at 10C measured with ethanol 11.0 kW
Cooling output at 5C measured with ethanol 9.9 kW
Cooling output at 0C measured with ethanol 8.7 kW
Cooling output at -10C measured with ethanol 6.0 kW

Additional Prep Fees May Apply
Shipping
Item shipping dimensions and specifications
Dimension Measurement
Height: 44.00 in
Width: 40.00 in
Length: 38.00 in
Weight: 200.00 lbs
Prep Fee: N/A
Registered customers can request free US domestic shipping quotes. Quotes take 1-3 business days to process.
