Item Details
Item specification details
Property Value
Item Id 214004
Item #: 214004

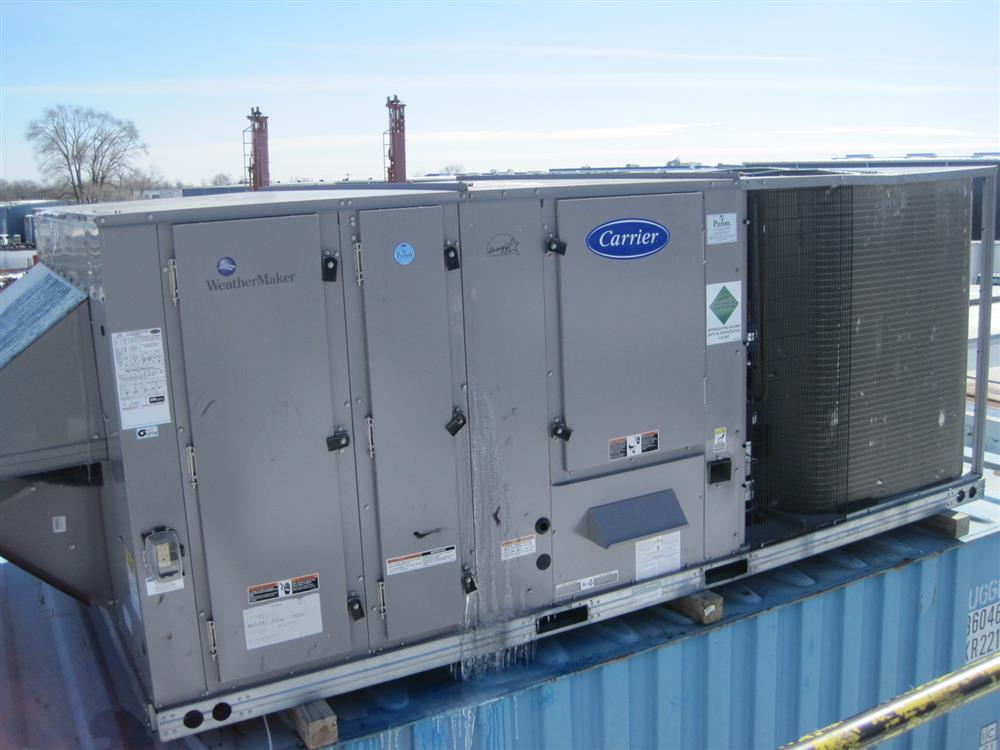

Item: CARRIER Weathermaster 20 Ton Packaged AC/Heating RTU (Unused )
Model #: 48HCFD24H3A6A2H5G0
Serial #: 0913U07993
Year Built: 2013
Location: Virginia
Price: $7,000.00
Description
Unused, 20 ton Carrier Weathermaster 48HC RTU- Packaged Heating/Cooling

Model: 48HCFD24H3A6A2HG50

Performance Features
• Puron® (R-410A) HFC refrigerant
• ASHRAE 90.1 and Energy Star compliant
• Single-stage capacity control (sizes 04 to 07)
• Two-stage cooling capacity control (sizes 08 to 28)
• SEERs up to 15.6
• EERs up to 12.2
• IEERs up to 13.0
• Exclusive non-corrosive composite condensate pan in accordance with ASHRAE 62 Standard, sloping design; side or center drain
• Gas efficiencies up to 82%
• Induced draft combustion
• Single and multi-state heating
• Pre-painted exterior panels and primer-coated interior panels tested to 500 hours salt spray protection
• TXV refrigerant metering device on each circuit with removable power element
• Fully insulated cabinet
• Enhanced copper tube and aluminum fin designed condenser and evaporator coils. Special coated coils also available
• Exclusive IGC solid-state control for on-board diagnostics with LED error code designation, burner control logic and energy saving indoor fan motor delay
• Dedicated 3-5 ton "Low NOx" models available that meet California Air Quality Management NOx requirement of 40 nangram/joule or ess. Low NOx models include stainless steel heat exchangers.
• Standard cooling operating range up to 125 °F (52°C) and down to 35°F (-2°C). Low ambient controllers can bring cooling operation down to -20°F (-29°C)
• Rated in accordance with ARI Standards 210/240 (sizes 04 to 06 ) and 340/360 (sizes 07 to 28)
• Designed in accordance with Underwriters’ Laboratories Standard 1995
• Listed by UL and UL, Canada, or ETL


Gas Heat Pkg. Rooftop; High Efficiency; High Gas Heat; 2 stage cooling; 20 ton Nominal Cooling Capacity; RA+SA Smoke Detector + CO2; High Static/ Vertical Supply, Return Air Flow; Al/Cu – AL/Cu; Voltage 460/3/60; RTU Open Multi- Protocol Controller; Hinged Panels, Powered C.O.; 2 Speed indoor fan (VFD) controller; Standard Packaging

Additional Prep Fees May Apply
Shipping
Item shipping dimensions and specifications
Dimension Measurement
Height: 63.00 in
Width: 87.00 in
Length: 158.00 in
Weight: 2247.00 lbs
Prep Fee: $75.00
Registered customers can request free US domestic shipping quotes. Quotes take 1-3 business days to process.
