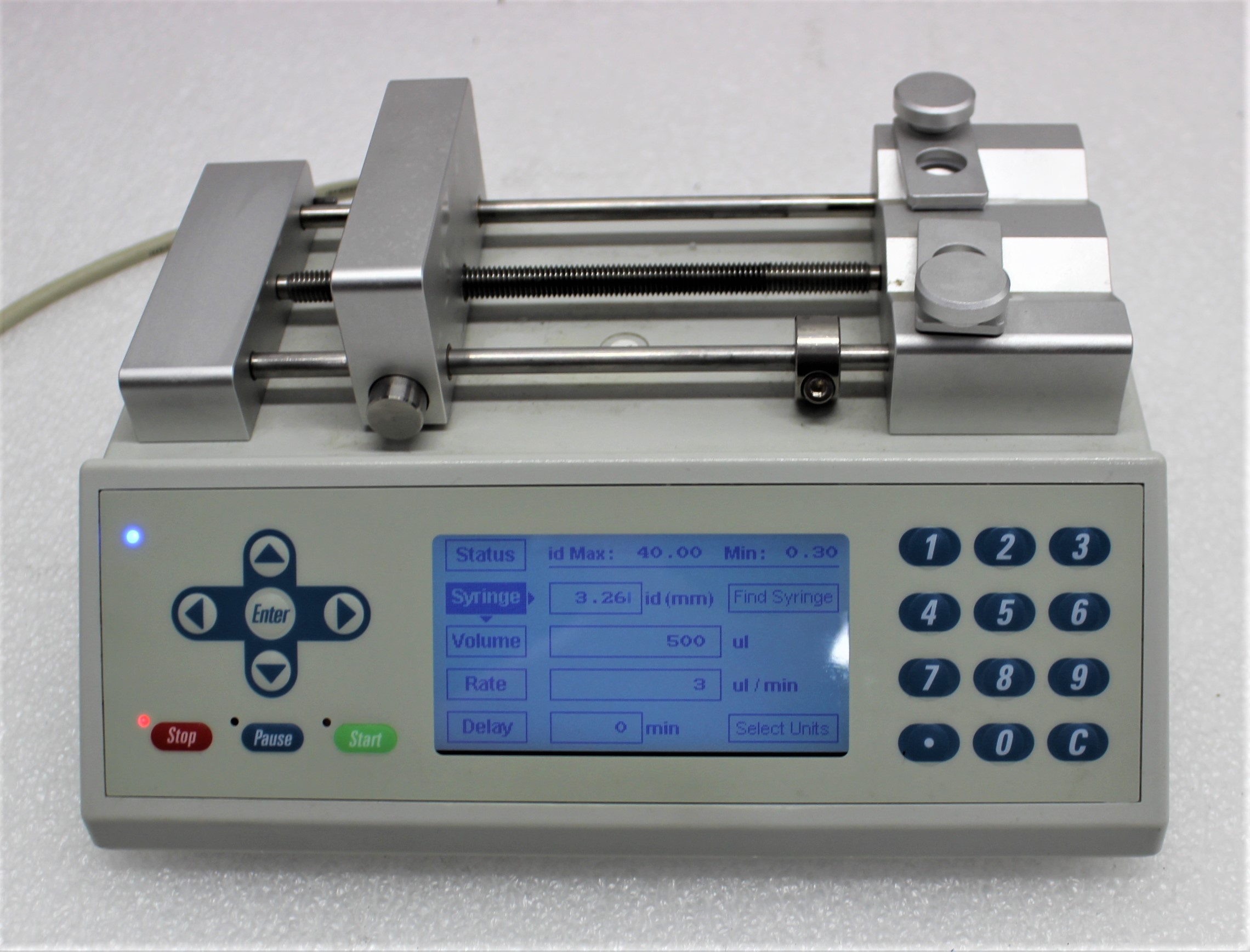

The Fusion 101 is a high-performance, low-cost syringe pump designed for use in synthetic chemistry, electro-spinning, drug infusion and ESI microliter injections.
System Overview
Chemyx Fusion 101 is an infusion-only syringe pump that performs most precision dispensing activities. This syringe pump comes equipped with a D9 RS232 port that directly accepts ASCII commands from Labview/Labwindows, HyperTerminal and Visual Studio without the need for drivers.
Bright LCD and Easy-To-Use Menu Interface
A monochrome graphic LCD display and directional keys makes the Fusion 101 a very easy-to-use syringe pump. Users can set any parameter through a familiar windows like environment and change settings from Syringe ID, flow rate, volume and delay time. We also included an internal syringe library that stores syringe dimensions from major manufacturers. The flow rate can be changed while the Fusion pump is running.
Smart Operation
A miniature computer continually monitors the system while in operation and provides constant status updates via the LCD display. In the event of a power failure the pump will remember the last settings and can resume operation when power is returned. The Fusion 100 will also detect overloads, shut off the motor and warn the user with an audible alarm. An adjustable safety nut on the guide rod can be used to protect glass and microsyringes.
Standard Features:
Graphic LCD interface
RS232 port for computer control
Integrated syringe dimensions library
Selectable rate units: l/hr, l/min, ml/hr, ml/min
Stall detection with audible alarm
Silent operation
Accommodates any syringe: glass, plastic, and microsyringes
ModeInfuse Only
Accuracy < 0.35%
Reproducibility < 0.05%
Syringe Size (Min/Max)0.5L to 60mL
Syringe Flow RatesSee Syringe Library for Min & Max Flow Rates
Minimum Flow Rate0.0001 L/min (with 0.5L syringe)
Maximum Flow Rate90 mL/min (with 60mL syringe)
Linear Force29lb (13.1kg)
Display4.3 inch LCD Screen
ConnectivityRS232 and TTL Ports
System Dimensions9.5 x 6.8 x 4.4 inches (24 x 17 x 11 cm)
Motor Drive0.9 Stepper Motor with Micro-stepping
Step Resolution0.198 m/step
Operating Temperature4C to 40C (40F to 104F)
Storage Temperature-10C to 70C (14F to 158F)
Humidity20% to 80% RH, non-condensing
Installation CategoryII
Regulatory ComplianceCE, RoHS, REACH, FCC, IC
