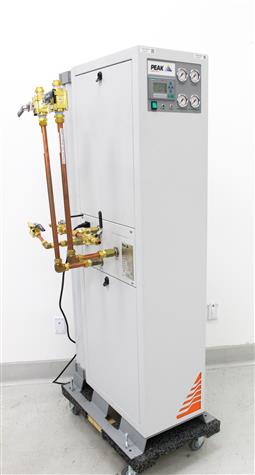

Peak Scientific i-FlowLab 20-6011 Nitrogen Generator
***Nitrogen Generator was tested as far as we could. We are unable to fully test this Nitrogen Generator due to, (unit needs to be connected to compressor.) This 20-6011 is preowned with minimal wear from normal use. Note: (service due & maintenance is required on unit.) Buyer can expect the same item pictured with 30-day warranty. (Dolly not included.) See photos for details.
(Please be advised that any warranty/guarantee/return policy provided from the seller is between the buyer and the seller only. Bid on Equipment is not and cannot be held responsible in any way. Please reference our Terms and Conditions for further information.)
i-FlowLab is a total laboratory on-site nitrogen gas solution for customers with high flow demands or high purity applications and is capable of delivering a consistent & reliable supply of gas on-demand.
Engineered based on robust PSA technology, i-FlowLab 6XX1 nitrogen generators are available in over 100 pre-configured specifications, designed to suit the full and varying demands of your facility, with flow rates ranging from 116-4253 L/min at purities up to 99.5%.
Modular & scalable, i-FlowLab is designed as a future-proof solution, with the ability to be expanded retrospectively, with the addition of CMS columns, in order to increase capacity and accommodate future growth in requirements.
i-FlowLab is an ideal complete laboratory solution for multiple applications, such as LC-MS, Sample Preparation, Gloveboxes and many more.
Features
Cost effective, total laboratory nitrogen gas supply solution
Consistent & reliable, always available on-demand to meet application needs
Energy efficient, with low ongoing running costs & minimal maintenance
Scalable & future-proof design, with ability to expand capacity by adding more CMS columns
Safe and convenient, no more manual handling or on-site health & safety concerns
Verified industry standards compliance (EIGA, European Pharmacopoeia, JECFA & US FDA)
Build-in oxygen analyzer, for continuous, real time monitoring of nitrogen purity & quality
Optional purity safeguard, auto-bypass feature for purity critical applications
Take complete control of your costs & nitrogen gas requirements, by bringing your supply in-house
Eliminate the need for gas cylinders, LN2 dewars /micro-bulk deliveries or large bulk liquid trucking
Reduce your on-site carbon footprint & become a self-reliant and sustainable operation
Gas
Gas Type: Nitrogen
Min Gas Flow: 21L/min
Max Gas Flow: 1236L/min
Max Output Pressure: 130psi/9bar
Max Purity: 99.9995%
Site & Installation
Max Inlet Pressure: 145psi/10bar
Min Air Inlet Flow: Dependent on required flow rate
Min Inlet Air Quality: ISO 8573-1:2010 Class 1.2.1
Start Up Time: Dependent on model
Power Consumption: 250 Watts
Voltage: 100-230 10% VAC
Frequency: 50 / 60 Hz
Current: 2.0-1.0 Amp
Max Operating Temp: 50C / 122F
Particles: <0.01m
Noise Level: 59dBa @1m
Accreditations: CSA, CE
Integrated Compressor: No
Dimensions & weight
Size (HxWxD) mm: 1738 x 500 x 760 mm
Size (HxWxD) Inches: 68.4 x 19.7 x 29.9 inches
Generator Weight: 197kg / 433.4lbs
Service Requirements
Annual maintenance
Annual O2 analyzer calibration (optional)
Replace O2 analyzer every 4 years
General
Expand to meet demand: i-Flow Lab can be expanded to include up to 10 banks. Each bank is 160mm (6.3) and total depth of a 10 bank system including the i-FlowLab system is 2200mm (86.61).
Downloads
Data sheet (Eng)
i-FlowLab - Brochure (Eng)
i-FlowLab 6XX2 - Datasheet
i-Flow - NPL Performance Data
i-Flow 6000 Series - User Manual (Eng)
Additional Prep Fees May Apply
