Item Details
Item specification details
Property Value
Item Id 337059
Item #: 337059

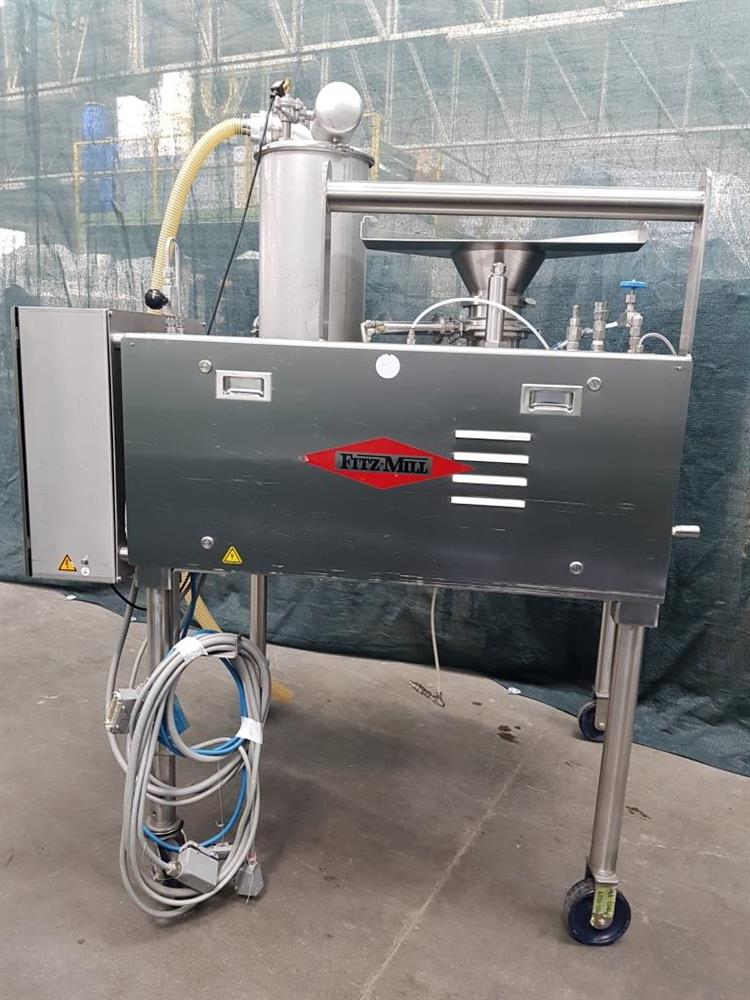

Item: FITZPATRICK FITZMILL D6A-0601 Comminuting Mill
Model #: FITZMILL D6A-0601
Serial #: N/A
Year Built: 2006
Location: Italy
Price: $19,000.00
Description
Comminuting mill is used for the down sizing, grinding, pulverization and dispersion of wet and dry products in pharmaceutical, chemical, food, cosmetics, fertilizers industry etc. Controlled particle size reduction helps assure that the milled material will be consistent and repeatable with respect to color, uniformity, flowability, density. The product is fed from the top through in feed hopper and a rotary valve and material falls on the rotor blades beater assembly for milling or pulverization. Due to the knife edges mounted on rotor, the downsizing of particle takes place and gets pushed outward from the bottom opening.

Click Link to View Manufacturer’s Brochure

SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.

MAIN FEATURES:
The Fitzmill comminutor operates by feeding material uniformly into the chamber in which a rotating blade assembly reduces the particles of the material by cutting or impacting them. The material discharges through a screen which regulates final particles size at the outlet of the milling chamber. The blade and screen act in conjunction to determine final product sizing. The fitz mill comminutor has a structure mounted on castors and is easy to be installed, dismantled and cleaned. All parts contacting materials are made of stainless steel, which is anti-acid and anti-corrosive, so that the machine is according with sanitary standard. The machine has the features of stable running, easy moving, low noise, high grinding efficiency, and low consumption of power. The rotor has four sets of four reversible blades. Knife edges can be removed for cleaning very easily. The unit can be equipped with several screens, for examkìple square hole screen, round hole screen, mesh screen. The D6A is equipped with a one-piece rotor assembly with dual knife/impact edge. The impact edge is designed for fine size reduction, whereas the knife edge is utilized for producing a granular end product with minimum fine powder. Nitrogen is injected into the process which permits the machine to operate under inert atmospehere. The settings of nitrogen flow and pressure are manually regulated. The unit is equipped with rotary vacuum lock with seal CORA, glass tube variable area flowmeter and separator filter, with 30 L capacity, applied for pneumatic transport.

Year: 2006

TECHNICAL DATA
Length mm 1580
Width mm 1100
Height mm 2040
Net weight Kg 1500
Rotor type D6A
Frequency 50 Hz
Voltage 400 Volt
Phases 3
Balance speed 4600 rpm
