DESCRIPTION:

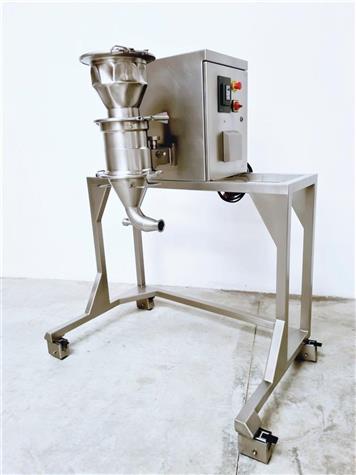

Conical sieve mill used to de-agglomerate and calibrate granular products. Thanks to its compact and modular design, the Coniwitt-200 is easy to integrate into complete process plants. With its exceptional diversity and high throughput, this conical sieve mill can be used in any demanding grinding process, both for optimal particle size distribution and high throughput, as well as for temperature sensitive products or potentially explosive substances.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
MAIN FEATURES:
The conical sieve mill consists of the milling head, a conical sieve, and the rotor. The rotary motion of the rotor causes the product to flow through the sieve, suited for the disagglomeration and processing of dry and wet powders. Made of 316L stainless steel.
Year of construction: 2000
TECHNICAL DATA
Length mm 1400
Width mm 950
Height mm 1750
Net weight Kg 300
Power Kw 4
Frequency Hz 50
Voltage Volt 3x400
Rotation Speed rpm 1800
Additional Prep Fees May Apply
