Item Details
Item specification details
Property Value
Item Id 417998
Item #: 417998
Item: BINDER ED 56/ 9010-0334 Gravity Convention Drying and Heating Oven
Model #: ED 56/ 9010-0334
Serial #: N/A
Year Built: N/A
Location: California
Price: $1,750.00
Description

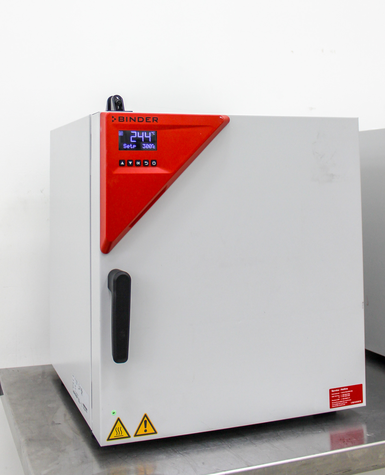

BINDER Gravity Convention Drying and Heating Oven model: ED 56/ 9010-0334

**This Oven has been tested to specifications. Has minimal rusty marks inside oven (Does not affect functionality). Buyer can expect same unit as pictures. See photos for further details.

The BINDER ED 56 (version ED056UL-120V), Avantgarde. Line Gravity Convection drying and heating chamber has a capacity of 2 Cu Ft (57 L) and a temperature range ambient +5 to 300C and requires 120V power. The strengths of a BINDER ED series Avantgarde. Line drying chamber include routine drying and sterilization tasks up to 300C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.

High temperature accuracy thanks to APT. lin technology
Gravity convection
Controller with LCD display
Electromechanical control of the exhaust air flap
2 chrome-plated racks
Units up to 115 L are stackable
Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
Ergonomic handle design
USB port for recording data

Technical Specifications:
Temperature range 5 C above ambient temperature to [C] 300
Temperature variation at 150 C [K] 2.3
Temperature fluctuation at 150 C [K] 0.4
Heating-up time to 150 C [min] 50
Recovery time after 30 seconds door open at 150 C [min] 19
Rated Voltage [V] 120
Power frequency [Hz] 60
Nominal power [kW] 1.15
Unit fuse [A] 12.5
Phase (Nominal voltage) 1~
Wall clearance back [in] 6.3
Wall clearance sidewise [in] 3.94
Unit doors 1
Chamber Width [in] 14.18
Chamber Height [in] 16.55
Chamber Depth [in] 14.97
Interior volume [cu.ft.] 2
permitted load [lbs] 154
Load per rack [lbs] 66
Energy consumption at 150 C [Wh/h] 180
Number of shelves (std./max.) 2/4

Additional Prep Fees May Apply
Shipping
Item shipping dimensions and specifications
Dimension Measurement
Height: 26.00 in
Width: 27.00 in
Length: 22.00 in
Weight: 60.00 lbs
Prep Fee: N/A
Registered customers can request free US domestic shipping quotes. Quotes take 1-3 business days to process.
