Item Details
Item specification details
Property Value
Item Id 342033
Item #: 342033

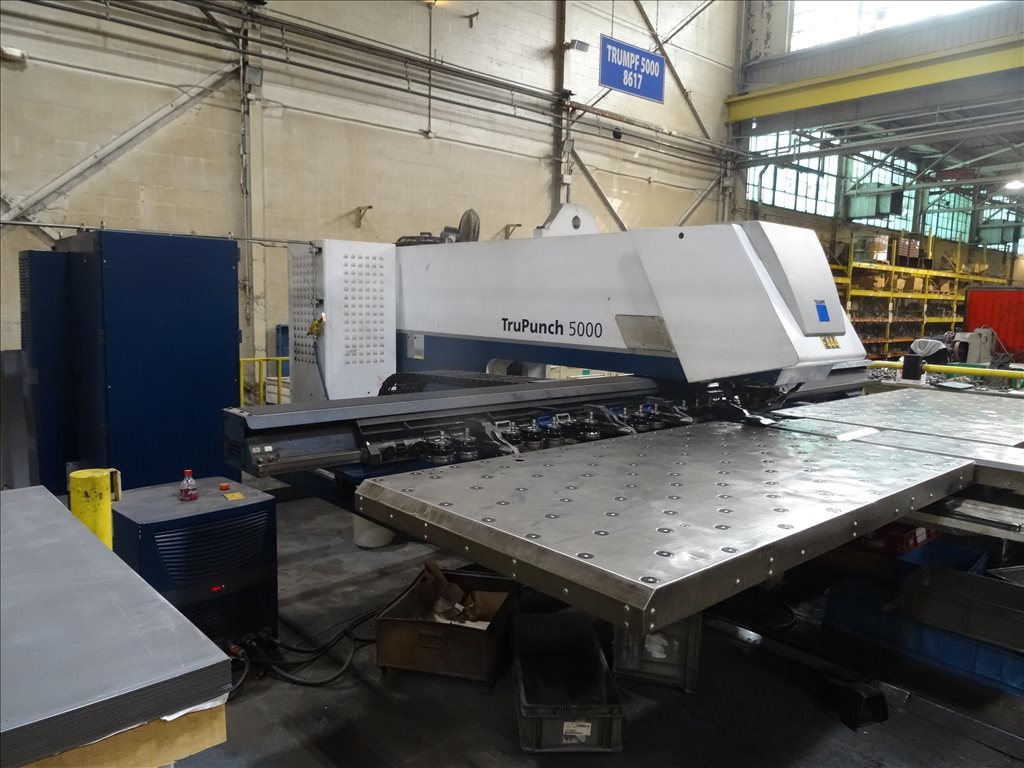

Item: TRUMPF TRUPUNCH 5000 CNC Turret Punch - 24 Ton
Model #: TRUPUNCH 5000
Serial #: N/A
Year Built: N/A
Location: Illinois
Price: $239,500.00
Description
Max. Punching / Forming Force: 24 Tons
Table Size: 200in x 49in
Number of Tool Stations: 21
Number of Tools / Clamps: 18 / 3
Number of Tools (When Using Multitool / Clamps): 18 - 180/2
Number of Clamps: 3
Max. Workpiece Weight: 441 lbs.
Max. Presser Foot Force; 2.25 Tons
Progr. Presser Foot Force: 0.5 - 2.25 Tons
Max. Stroke Speed: 157 IPM
X-Axis Joint Speed: 328 FPM
Y-Axis Joint Speed: 197 FPM
C-Axis Joint Speed: 1148 FPM
Tool Change Time, Standard Tool: 2.8 sec.
Tool Change Time, MultiTool: 0.3 sec.
Repeatability: 0.00004in

EQUIPPED WITH:

Trumpf CNC Control
Wilson / DCM Tool Sharpener
Quincy PLT-15 Air Compressor
(5) Vidmar Cabinets of Misc. Tooling (Cabinets Included)

Additional Prep Fees May Apply
Shipping
Item shipping dimensions and specifications
Dimension Measurement
Height: N/A
Width: N/A
Length: N/A
Weight: N/A
Prep Fee: N/A
Registered customers can request free US domestic shipping quotes. Quotes take 1-3 business days to process.
