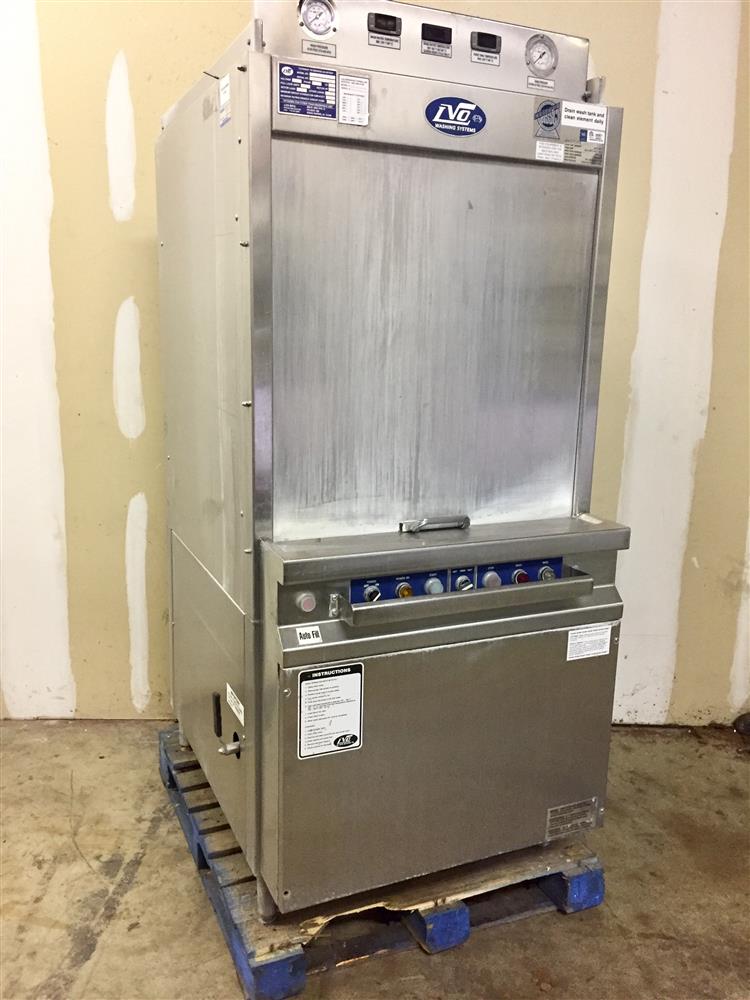

WAS TOOK OUT OF A WORKING ENVIRONMENT
SHIPPING CAN BE ARRANGED FOR A FLAT FEE OF 300.00 TO A COMMERCIAL ADDRESS WITH DOCK DOOR OR FORKLIFT
Hot Water System
3⁄4” hot water supply required, union provided
140°F water required at the machine
78 GPH at 20 PSI (6 1⁄2 gal/cycle x 12 cycle/hr)
Rinse booster: (1) 9 kW heating element in a 10 gallon rinse tank OR
page4image7904 page4image8064
Full Load Amps
Electric
Gas/Injected Steam
Recirculating Steam
Gas System (Gas Machines Only)
230 Volt 70.4 47.8 25.2
460 Volt 36.2 24.9 13.6
1⁄2” steam coil in a 10 gallon rinse tank (Recirculating Steam Only)
208 Volt 77.6 52.6 27.6
1⁄2” gas supply
Natural: 7” W.C. minimum inlet, 6” W.C. main manifold – 48,000 BTU Propane: 11” W.C. minimum inlet, 10” W.C. main manifold – 48,000 BTU 3” stainless steel chimney on back of machine
Steam System (Steam Models Only)
3⁄4” steam line, 10-15 PSI 23 lbs/hr average – Injected
43 lbs/hr average – Recirculating
Wash System
10 Hp pump recirculates approximately 180 GPM @ 55 PSI Heat: Electric – (1) 9 kW heating element
Gas – (2) 24,000 BTU rated infrared burners – 48,000 BTU total
Injected & Recirculating Steam – 10 to 15 PSI, 23 lbs/hr average 40 gallon wash tank
1 1⁄2” copper drain
6” steam exhaust vent companion flange
Additional Prep Fees May Apply
