This machine could be used to wash and sanitize a wide variety of commercial, institutional, manufactured, and medical objects such as animal cages, machined parts, flatware, dishware, lab ware, trays, re-usable shipping totes, scientific objects, and much more!!!
IF NEW REPLACEMENT VALUE TODAY....OVER $100,000.00!!!

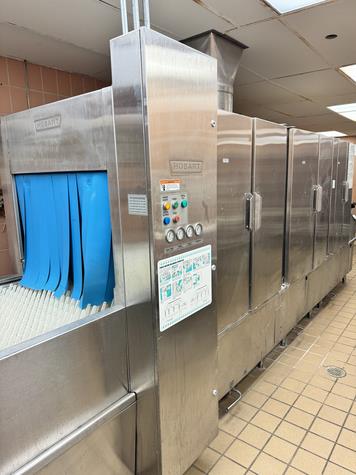

Fully automatic, flight-type dishwasher machine consisting of a load section with power, recirculating prewash, an 8-foot power wash, power rinse, and final rinse section. Flexible plastic strip curtains to control overspray.
FEATURES:
- Conveyor Width: 30 1/2"
- Overall Dimensions
(H x W): 22' & 10 - 1/2" Length: 22 feet (includes: 5' load section, 8' center section, 9' unload section)
- Direction of operation - left to right
- 42" access doors on power wash and power rinse chambers, 34" access doors on prewash chamber
- Variable speed conveyor: 4-12 fpm
- Continuous racking automatic conveyor
- Water usage 132 GPH with Opti-Rinse
- 3 HP prewash, power wash, and power rinse pump motors
- Rate of Rinse Flow (at 20 psi. Flow Pressure): High Temperature 5.4 GPM
- Rinse Consumption (20 psi flow pressure): High Temperature 324 GPH
- Peak Rate of Drain Flow (Initial rate with a full tank): 38 GPM
- S/S pumps and impellers
- Insulated doors
- Voltage - 208/60/3
- Steam/electric heat
- Electric tank heat
- Single-point vent connection
- 30kw electric booster
- Booster heater - electric
- Prewash temperature control
Additional Prep Fees May Apply
