Thermo Scientific Dionex Water Purification System IC Pure AS IS or for Parts
**This unit has been tested as far as we could. Dionex IC Pure is not able to reach the 18.2 MOhm/cm. The value is not increasing more than 10 MOhm/cm. Has slight cosmetic blemishes from normal use. See photos for further details
Unit will need new filters.

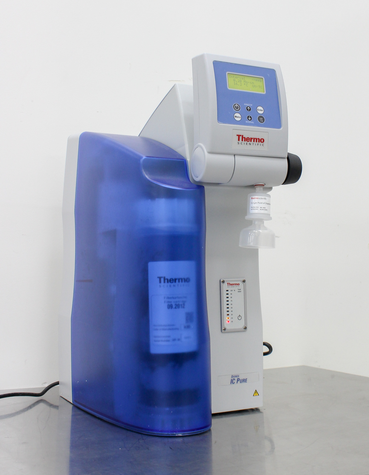

The Thermo Scientific Dionex IC Pure water purification system brings reagent-free ion chromatography to the next level by producing ultrapure water used in the analysis of anions, cations, organic acids, carbohydrates, and amines in water samples. This system has been engineered to remove impurities that threaten your results so you can focus on what is important the sensitivity and resolution of your ion chromatography analysis. Additionally, the Dionex IC Pure water purification system provides ultrapure water to the entire Dionex RFIC product line.
Multiple RFIC System Support
Provides ultrapure water for one or two RFIC systems
Point-of-use system designed to simplify operation
Inline Connection for RFIC Systems
3 psi pressurized ultrapure water for electrolytic eluent generation
30 psi pressurized ultrapure water for electrolytic suppressors operating in external water mode
External 20L Tank with Automated Refilling Station
Provides large reservoir of pretreated or tap water for ultrapure water production
Never needs refilling the 20L tank is automatically refilled when levels are low
Ergonomic Touchpad Display
Displays key operating conditions
Provides system set up and control at the instrument
Ultrapure Polishing Cartridge
Contains high quality resin for consistent purity and long cartridge life
Aquastop quick connections for fast replacement
Space Saving Design
System footprint measures 55cm (21.65 in) H x 30.6cm (12.05 in) W x 38.5cm (15.16 in) D
Optional wall mounting bracket for additional space saving
Internal 5L Tank
Easy addition of pretreated or tap water
Long refill requires less operator time and attention
Onboard Conductivity/TOC Meters
Direct readout of water quality
Warns when consumable change is needed
Alarms when feed water quality is compromised
Specifications
Source potable tap water pretreated water (ASTM Type II)
Silt density index (SDI)< 3-- (not applicable)
Conductivity
(reference temperature +25 C) 1200 S/cm (0.0008 Mcm)< 1 S/cm or > 1 Mcm
Free chlorine max. 0.1 ppb (g/LMax. 0.05 ppb (g/L)
Manganese content max. 0.05 ppm (mg/L)-- (not applicable)
Iron content max. 0.05 ppm (mg/L)-- (not applicable
pH range 4 - 114 - 11
TOC value< 2000 ppb (g/L) max. 50 ppb (g/L)
Bacteria count < 100 CFU/mL< 100 CFU/mL
Turbidity < 1.0 NTU< 1.0 NTU
Carbon dioxide
(CO2) max. 30 ppm (mg/L)max. 30 ppm (mg/L)
Silicate max. 30 ppm (mg/L)max. 3 ppm (mg/L)
Temperature +2 - +35 C (35.6 to 95 F)+2 - +35 C (35.6 to 95 F)
Pressure for automatic filling 1.45 - 58 psi (at a pressure >
58 psi a pressure reducer
must be installed upstream of the unit.-- (not applicable)
Conductivity (reference temperature +25 C) 0.055 S/cm
Resistanceup to 18.2 Mcm
TOC value max. 5 ppb (g/L)
RNase
DNase< 0.003 ng/mL
< 0.4 pg/uL
Bacteria < 0.1 CFU/mL
Bacterial endotoxines 0.001 EU/mL
Particles > 0.2 m per mL < 1 m/mL
Flow rate without pretreatment cartridge at manually operated point of use (POU) 0.6 L/min 0.2 L/min
Flow rate with pretreatment cartridge at manually operated POU 0.2 L/min + 0.2 L/min
Feedwater conductivity 0.16 cm-1
Conductivity TOC 0.01 cm-1
Ultra pure water conductivity 0.01 cm-1
Feedwater tubing 8 mm (0.31 in) o.d.
Input voltage 100 240 VAC, 50 60 Hz, 2.0 A max
Temperature
range min. +2 C, max +40 C, 80%
relative humidity, non-condensing/ Storage: min. +2 C, max. +60 C, 90% relative humidity, non-condensing
Degree of pollution 2
Sound pressure level 49 db(A)
