Item Details
Item specification details
Property Value
Item Id 414081
Item #: 414081
Item: EDWARDS E2M30 Rotary Vane Vacuum Pump
Model #: E2M30
Serial #: N/A
Year Built: N/A
Location: California
Price: $1,750.00
Description

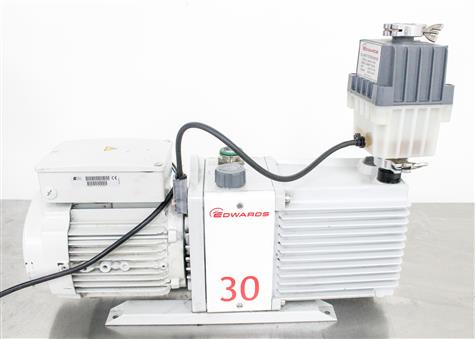

Edwards E2M30 Rotary Vane Vacuum Pump A374-15-903

**This E2M30 Vacuum Pump was tested to specifications. Ultimate pressure measuring 0.000 Mbar. Unit has slight wear from normal use. Pressure gauge NOT included. See photos for details. Buyer can expect a the same item pictured with 30-day warranty. See photos for details.

(Please be advised that any warranty/guarantee/return policy provided from the seller is between the buyer and the seller only. Bid on Equipment is not and cannot be held responsible in any way. Please reference our Terms and Conditions for further information.)

The Edwards E2M30 Rotary Vane Vacuum Pump offers excellent ultimate pumping speed while providing quiet operation. With outstanding vapor handling capabilities, the E2M30 is a reliable and versatile 208V vacuum pump.

There are a multitude of applications for the Edwards E2M30, including use with sterilization, mass spectrometry, lasers, vacuum distillation, epoxy degassing, brake line evacuation, freeze drying, space research, refrigeration dehydration, vacuum ovens, backing combinations, thin film coating, and other vacuum processes.

Large, clearly marked, easily accessible controls
Operate at quiet 48dBA
Easy to use and service (require no special tools)
Fast-acting inlet valve prevents oil and gas suck-back in the event of power or oil pressure loss
NW25 inlet/outlet connections
High vacuum or high throughput from the same pump

Easily selectable modes
High Vacuum mode provides ultimate vacuum down to 1.5 x 10-3torr with no gas ballast
High Throughput mode sustains long-term high inlet pressures with ultimate vacuum as low as 2.3 x 10-2torr without gas ballast
Adjustable gas ballast control maximizes vapor handling capability

Gas ballast delivered into pump prevents condensation of vapor carried by pumped gases
Three user-selectable gas ballast positions '0' Closed, 'I' Low Flow, 'II' High Flowmeet most vapor handling requirements.

Manufacturer's Specifications
Maximum Pressure
1.5 x 10-3mbar

Horsepower
0.5 hp

Noise Level
48 dB (A)

Flow Rate
76 L/min.

Temperature (English)
Max. 104F

Temperature (Metric)
Min. 12C

Additional Prep Fees May Apply
Shipping
Item shipping dimensions and specifications
Dimension Measurement
Height: 19.00 in
Width: 24.00 in
Length: 7.00 in
Weight: 97.00 lbs
Prep Fee: N/A
